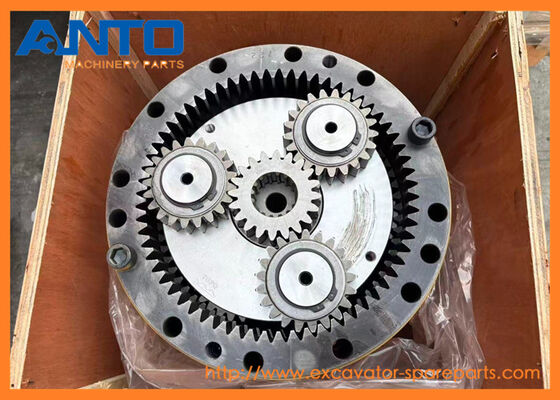

- 31Q6-10141 Swing Gearbox HYUNDAI Excavator Spare Parts For R160LC9 R180LC9 R210LC9
| Name |
Swing Gearbox |
| Parts No |
31Q6-10141 |
| Machine Model |
R160LC9 R180LC9 R210LC9 R220LC9A R170W9 R180W9A |
| Category |
Swing Reduction Gear |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Power Input: The swing hydraulic motor (e.g., 31Q6-10130) delivers high-speed, low-torque power to the gearbox’s input shaft. |
| 2. Torque Conversion: Power flows through 3 stages of planetary gears: Input shaft → sun gear → planet gears (rotating around sun gear) → ring gear (fixed) → carrier (outputs low-speed, high-torque). |
| 3. Turntable Drive: The gearbox’s output flange connects to the excavator’s turntable gear ring; the high-torque output rotates the turntable (upper body) smoothly. |
| 4. Braking: When the swing motor stops, hydraulic pressure to the brake is released – the multi-disc brake clamps the output shaft, locking the turntable in place to prevent drift. |
| Core Functions |
1. Torque Amplification: Converts low-torque hydraulic motor power into high-torque force needed to rotate the heavy upper turntable (cab + boom + bucket = 5–8 tons). |
| 2. Speed Control: Reduces hydraulic motor speed (1,500–2,000 RPM) to turntable speed (2.5–3.5 RPM) – ensures precise, controlled rotation for digging/loading. |
| 3. Load Holding: Integral hydraulic brake prevents turntable drift (even with heavy loads) – critical for safety on uneven ground. |
| 4. Power Transmission Efficiency: 92–95% efficiency (minimal power loss) – maximizes excavator fuel efficiency and swing performance. |
9-SERIES CRAWLER EXCAVATOR R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A RB160LC9S RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R170W9 R180W9A R180W9S R210W-9 R210W9A R210W9S
F-SERIES CRAWLER EXCAVATOR HX160L HX180L Hyundai
- More other swing parts fit for HYUNDAI machine
| 39Q5-12100 SWING REDUCTION GEAR |
| R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| |
| 31Q5-21120 SWING MOTOR SUB ASSY |
| R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R180W9S |
| |
| 31Q5-21130 SWING MOTOR SUB ASSY |
| R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R180W9S |
| |
| 31Q5-21220 SWING MOTOR SUB ASSY |
| R160W9A, R170W9 |
| |
| 31Q5-21230 SWING MOTOR SUB ASSY |
| R160W9A, R170W9 |
| |
| 31Q5-21320 SWING MOTOR SUB ASSY |
| R180W9A |
| |
| 31Q5-21330 SWING MOTOR SUB ASSY |
| R180W9A |
| |
| 31Q6-10151 SWING MOTOR ASSY |
| R210LC9 |
| |
| 31Q6-10151SG8 SWING MOTOR ASSY |
| R210LC9 |
| |
| 39Q6-10152 SWING MOTOR ASSY |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A |
| |
| 38Q6-10152 SWING MOTOR ASSY |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A |
| |
| 38Q6-10172 SWING MOTOR ASSY |
| R210W-9, R210W9MH, R210W9S |
| |
| 81Q6-01080 SWING BEARING |
| HX220L, R210LC9, R210LC9BH, R220LC9A, RB220LC9S |
| |
| 38Q6-11100 SWING MOTOR |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| |
| 38Q6-10150 SWING MOTOR |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R235LCR9, R235LCR9A, RB220LC9S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| N*. |
@ |
[1] |
SWING MOTOR ASSY |
SEE 4100 |
| *-2. |
31Q6-10140 |
[1] |
SWING REDUCTION GEAR |
|
| *-2. |
31Q6-10141 |
[1] |
SWING REDUCTION GEAR |
|
| *-2. |
31Q6-10141AR |
[1] |
SWING REDUCTION GEAR |
|
| 1 |
XKAQ-00771 |
[1] |
CASING |
|
| 1 |
XKAQ-00962 |
[1] |
CASING |
|
| 2 |
XKAQ-00403 |
[1] |
SHAFT-DRIVE |
|
| 2 |
XKAQ-00780 |
[1] |
SHAFT-DRIVE |
|
| 3 |
XKAQ-00018 |
[1] |
SPACER |
|
| 4 |
XKAQ-00026 |
[1] |
BEARING-ROLLER |
|
| 5 |
XKAQ-00032 |
[1] |
SEAL-OIL |
|
| 6 |
XKAQ-00029 |
[1] |
BEARING-ROLLER |
|
| 6 |
XKAQ-00647 |
[1] |
BEARING-ROLLER |
|
| 6 |
XKAQ-00961 |
[1] |
BEARING-ROLLER |
|
| 7 |
XKAQ-00404 |
[1] |
PLATE-THRUST |
|
| 8 |
XKAQ-00753 |
[1] |
CARRIER ASSY 2 |
NOT SHOWN |
| 9 |
XKAQ-00075 |
[1] |
CARRIER 2 |
|
| 10 |
XKAQ-00023 |
[3] |
GEAR-PLANET 2 |
|
| 11 |
XKAQ-00643 |
[3] |
PIN ASSY 2 |
NOT SHOWN |
| 12 |
XKAQ-00070 |
[3] |
PIN 2 |
INLC 13 |
| N13. |
XKAQ-00291 |
[1] |
BUSHING 2 |
|
| 14 |
XKAQ-00071 |
[6] |
WASHER-THRUST |
|
| 15 |
XKAQ-00048 |
[3] |
PIN-SPRING |
|
| 16 |
XKAQ-00755 |
[1] |
GEAR-SUN 2 |
|
| 17 |
XKAQ-00754 |
[1] |
CARRIER ASSY 1 |
NOT SHOWN |
| 18 |
XKAQ-00531 |
[1] |
CARRIER 1 |
|
| 19 |
XKAQ-00025 |
[3] |
GEAR-PLANET 1 |
|
| 20 |
XKAQ-00532 |
[3] |
PIN 1 |
|
| 21 |
XKAQ-00030 |
[3] |
CAGE-NEEDLE |
|
| 22 |
XKAQ-00057 |
[3] |
PLATE-SIDE 1 |
|
| 23 |
XKAQ-00040 |
[3] |
PLATE-SIDE 2 |
|
| 24 |
XKAQ-00041 |
[3] |
RING-STOP |
|
| 25 |
XKAQ-00010 |
[1] |
GEAR-SUN 1 |
|
| 26 |
XKAQ-00534 |
[1] |
PLATE-SIDE 3 |
|
| 27 |
XKAQ-00529 |
[1] |
GEAR-RING |
|
| 27 |
XKAQ-00779 |
[1] |
GEAR-RING |
|
| 28 |
XKAQ-00977 |
[1] |
GEAR-PINION |
|
| 29 |
XKAQ-00074 |
[1] |
RING-STOP |
|
| 30 |
XKAQ-00072 |
[2] |
PIN-KNOCK |
|
| 31 |
XKAQ-00065 |
[12] |
BOLT-SOCKET |
|
| 32 |
XKAQ-00031 |
[1] |
PLATE-COVER |
|
| 33 |
XKAQ-00064 |
[8] |
BOLT-HEX |
|
| 34 |
XKAQ-00043 |
[1] |
PLATE-LOCK |
|
| 35 |
XKAQ-00042 |
[2] |
BOLT-HEX |
|
| 36 |
XKAQ-00292 |
[1] |
WASHER-LOCK |
|
| 37 |
XKAQ-00049 |
[1] |
PLUG |
|
| 38 |
XKAQ-00066 |
[2] |
PLUG |
|
| *-1. |
@ |
[1] |
SWING MOTOR UNIT |
SEE 4100 |
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
