39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL

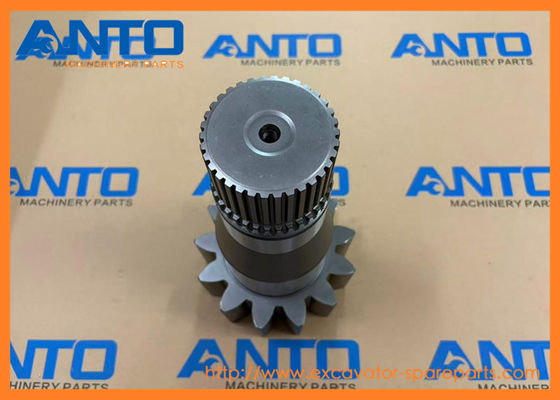

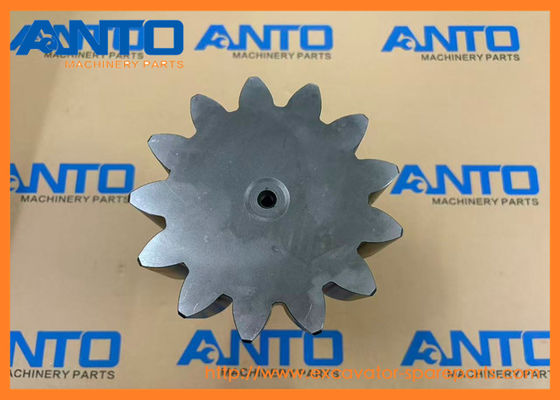

Büyük resim : 39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	OEM
Model numarası:	39K6-12120

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Fiyat:	149 USD / pcs
Ambalaj bilgileri:	Ağır parçalar için ahşap kutu, hafif parçalar için kağıt karton
Teslim süresi:	3-7 iş günü
Ödeme koşulları:	T/T, D/P, D/A, Western Union, L/C, MoneyGram
Yetenek temini:	100-2000

İletişim

Detaylı ürün tanımı

kategori:	Salıncak Donanımı	Makine modeli:	HX220L HX220NL
Başvuru:	Ekskavatör	Ürün adı:	Tahrik mili
Parça numarası:	39K6-12120	Paketleme:	Standart ihracat karonu
Vurgulamak:	HYUNDAI excavator drive shaft , HX220L excavator spare parts , 39K6-12120 drive shaft replacement

39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL

Specification

Name	Drive Shaft
Parts No	39K6-12120
Machine Model	HX220L HX220NL
Category	Swing Ruduction Gear
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

Function

This drive shaft integrates two CV joints to maintain smooth power delivery under varying angles and loads. The inner joint connects to the transaxle output, while the outer joint attaches to the wheel hub. The shaft tube is designed to be lightweight yet rigid, reducing rotational inertia and improving fuel efficiency.

Compatible models

F-SERIES CRAWLER EXCAVATOR HX220L HX220NL Hyundai

More other shaft parts fit for HYUNDAI machine

3935646 SHAFT-ACCESSORY DRIVE

100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 35D-9, 50D-9, 80D-9, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL730TM7, HL730TM7A, HL740-7, HL740-7A, H...

4928699 SHAFT-ROCKER LEVER

110D-7A, 110D-7E, 110D-9, 35D-9, 50D-9, 80D-9, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL740-7A, HL740-9, HL740-9A, HL740-F, HL740TM-7A, HL740TM-9, HL740TM-9A, HL740TM-F, HL757-...

XKAY-00009 SHAFT-CAM

HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R110-7, R110-7A, R1200-9, R125LCR-9A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R14...

81N6-13110 SHAFT

HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC7, R180LC7A, R180LC9, ...

81EM-13031 SHAFT

HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R21...

31N6-40921 SHAFT

HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235...

81N6-11111 SHAFT

HX180L, HX220L, HX220NL, HX235L, HX260L, R180LC9, R180LC9A, R180LC9S, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A...

39Q6-11120 SHAFT

HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210L...

39Q6-41180 SHAFT

HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7

Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
*.	39K6-10150	[1]	SWING MOTOR ASSY	-1, -2, TYPE 1
*.	39K6-10151	[1]	SWING MOTOR ASSY	-1, -2, TYPE 1
*.	38K6-10150	[1]	SWING MOTOR ASSY	-1, -2, TYPE 2
*.	38K6-10151	[1]	SWING MOTOR ASSY	-1, -2, TYPE 2
*-2.	39K6-12100	[1]	SWING REDUCTION GEAR
*-2.	39K6-12101	[1]	SWING REDUCTION GEAR
1	39Q6-12110	[1]	GEAR-RING
2	39K6-12120	[1]	SHAFT-DRIVE
3	39Q6-12130	[1]	BEARING-TAPER.MAIN
4	39Q6-12140	[1]	BEARING-TAPER
5	39Q6-12150	[1]	NUT-RING
6	39Q6-12161	[1]	PLATE-LOCK
7	S017-120166	[4]	BOLT-HEX
8	39Q6-12171	[1]	CASING
8	39Q6-12172	[1]	CASING
9	S109-100306	[10]	BOLT-SOCKET
K10.	39Q6-12190	[1]	CARRIER 2
K11.	39Q6-12200	[3]	GEAR-PLANETARY 2
K12.	39Q6-12210	[6]	BEARING-NEEDLE 2
K13.	39Q6-12220	[6]	WASHER-THRUST 2
K14.	39Q6-12230	[3]	PIN-CARRIER 2
K15.	S472-800364	[3]	PIN-SPRING
K16.	39Q6-12240	[1]	GEAR-SUN 2
K17.	39Q6-12260	[1]	CARRIER 1
K18.	39Q6-12271	[3]	GEAR-PLANETARY 1
K19.	39Q6-12280	[3]	BEARING-NEEDLE 1
K20.	39Q6-12290	[3]	WASHER-THRUST 1,UPP
K21.	39Q6-12300	[3]	WASHER-THRUST 1,LOW
K22.	39Q6-12310	[3]	PIN-CARRIER 1
K23.	S472-600364	[3]	PIN-SPRING
K24.	39Q6-12320	[1]	GEAR-SUN 1
K25.	39Q6-12330	[2]	PLATE-THRUST
26	39Q6-12340	[1]	SLEEVE
27	S631-120001	[1]	O-RING
28	39Q6-12350	[1]	SEAL-OIL
29	39Q6-41450	[2]	PIN-PARALLEL
30	S109-16045D	[12]	BOLT-SOCKET
31	39K6-12360	[1]	NAME PLATE
31	39K6-12361	[1]	NAME PLATE
32	39Q6-41800	[2]	RIVET
33	P220-430204	[1]	PLUG-HEX
*-1.	39K6-11100	[1]	SWING MOTOR UNIT	TYPE 1
*-1.	38K6-11100	[1]	SWING MOTOR UNIT	TYPE 2
*-1.	38K6-11100	[1]	SWING MOTOR UNIT	TYPE 2
K1.	39Q6-12180	[1]	CARRIER ASSY KIT 1	SEE ILLUST
K2.	39Q6-12250	[1]	CARRIER ASSY KIT 2	SEE ILLUST

39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL 0

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

Etiket:

Ekskavatör parçaları,

HYUNDAI excavator drive shaft,

HX220L excavator spare parts
