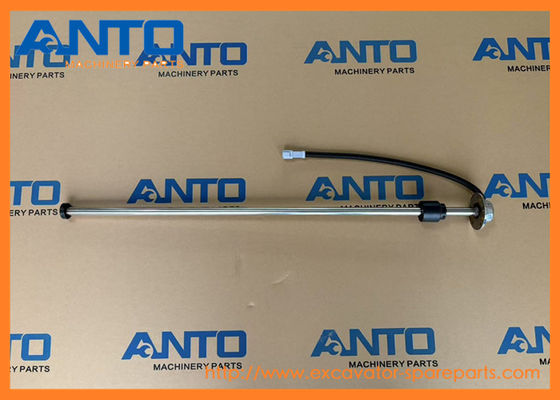

21N6-10701 21N610701 Fuel Sender Excavator Electric Parts Fit For HYUNDAI R110-7 R110-7A

• 21N6-10701 21N610701 Fuel Sender Excavator Electric Parts Fit For HYUNDAI R110-7 R110-7A

• Specification

• Function

1. Fuel Level Sensing
Physical mechanism: Mounted inside the fuel tank, the sender contains a float attached to a variable resistor (usually a potentiometer). As the fuel level changes, the float rises or falls, moving a wiper along the resistor’s track.
Input parameter: The position of the float, which corresponds directly to the fuel level (full, half, empty).
How it works: The changing resistance value is proportional to the fuel level—higher resistance for low fuel and lower resistance for full fuel. For example, a nearly empty tank might produce 100–200 ohms, while a full tank could be 20–50 ohms (values vary by model).

2. Electrical Signal Transmission
Connection: Typically connected to the fuel gauge or ECU via a two-wire circuit: one for the signal (variable resistance) and one for ground. In some systems, it may interface with a CAN bus for broader vehicle communication.
Signal type: Sends a DC voltage signal derived from the variable resistance. The ECU or gauge reads this voltage and converts it into a fuel level indication (e.g., a percentage or bar graph on the display).
Accuracy: To ensure stable readings, especially during movement or sloshing, the sender may include an anti-surge mechanism that dampens float movement, preventing false readings.

• Application

• More sender parts Applied To HYUNDAI machine

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
1	@	[1]	FUEL TANK ASSY
1-1.	31N3-02012	[1]	FUEL TANK WA
1-1.	31N3-02013	[1]	FUEL TANK WA
1-1.	31N3-02014	[1]	FUEL TANK WA
1-1.	31N3-02110	[1]	FUEL TANK WA
1-1-1.	31N4-02110	[1]	COVER-DRAIN
1-1-2.	E131-1038	[1]	CAP-FILLER
1-1-2.	31N4-02120	[1]	FUEL CAP ASSY
1-3.	31E1-10300	[1]	STRAINER
1-3.	31QA-02080	[1]	STRAINER
1-4.	31N6-02600	[1]	GAUGE-LEVEL
1-4.	33Q6-02600	[1]	GAUGE-LEVEL
1-5.	31E5-3049	[1]	FITTING
1-6.	E131-1006	[1]	VALVE-NEEDLE
1-7.	E128-1053	[1]	GASKET
1-8.	S037-103022	[6]	BOLT-W/WASHER
1-10.	S632-170001	[1]	O-RING
1-11.	21N6-10701	[1]	SENDER-FUEL
1-11.	21Q4-10700	[1]	SENDER-FUEL
1-111.	21N6-10710	[1]	FLOAT
1-12.	21E4-1104	[5]	SCREW
1-12.	S131-051546	[5]	SCREW-W/WASHER
1-14.	P220-430204	[1]	PLUG-HEX	W/O F/F/PUMP
1-14.	P090-101208	[1]	CONNECTOR-HOSE	W/F/F/PUMP
2	S017-200352	[4]	BOLT-HEX
3	91E6-60200	[4]	WASHER-HARDENED
4	31N8-01300	[5]	SHIM(1.0T)



• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.
