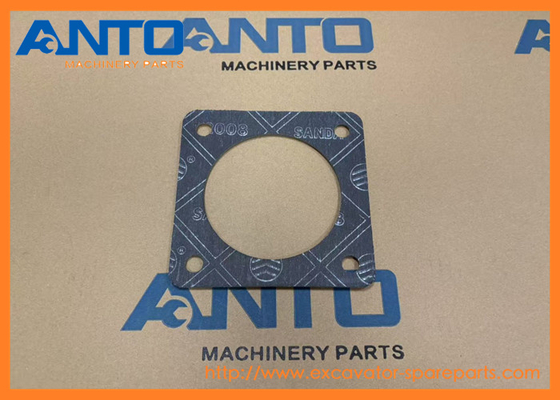

- 6150-11-5710 6150115710 Gasket KOMATSU Wheel Loader Spare Parts For SAA4D107E WA150 WA200
| Name |
Gasket |
| Parts No |
6150-11-5710 6150115710 |
| Machine Model |
WA150 WA200 WA200PT WA200PZ WA250 WA250PZ WA320 |
| Category |
Exhaust Muffler And Mounting Bracket |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
Its main function is to fill the gaps between two mating surfaces to prevent the leakage of fluids (such as water, oil, and gas). For example, it can be used to seal the connection between the engine cylinder head and the cylinder block, ensuring that the combustion chamber is well - sealed during engine operation, preventing the leakage of high - pressure gas, and at the same time, preventing coolant and lubricating oil from entering the combustion chamber, thus ensuring the normal operation of the engine.
DIESEL GENERATORS DCA
ENGINES 6D125 S4D102E S6D105 S6D95L SAA6D108E
WHEEL LOADERS WA150 WA150PZ WA200 WA200PT WA200PZ WA250 WA250PT WA250PZ WA320 Komatsu
- More other gasket parts fit for KOMATSU machine
| 6131-11-5170 GASKET |
| 6D105, 6D125, 6D125E, 6D95L, DCA, EGS160, EGS190, PC200, PC220, PC300, S4D105, S6D105 |
| |
| 6221-11-5813 GASKET |
| DCA, EGS160, EGS190, S6D108, S6D108E, SA6D108, SA6D108E, SAA6D108E |
| |
| 6221-11-6820 GASKET |
| DCA, EGS160, EGS190, S6D108, S6D108E, SA6D108, SA6D108E |
| |
| 6221-K1-9900 GASKET KIT,CYLINDER HEAD |
| DCA, S6D108, S6D108E, SAA6D108E, WA380 |
| |
| 6221-17-1810 GASKET,HEAD (K1) |
| DCA, EGS160, EGS190, S6D108, S6D108E, SA6D108, SA6D108E, SAA6D108E |
| |
| 6221-61-1810 GASKET |
| DCA, S6D108, S6D108E, SA6D108, SA6D108E, SAA6D108E |
| |
| 6222-K2-9900 GASKET KIT,CYLINDER BLOCK |
| DCA, SA6D108 |
| |
| 6222-11-6810 GASKET (K1) |
| DCA, EGS190, SA6D108, SA6D108E |
| |
| 6222-11-4710 GASKET (K1) |
| DCA, EGS190, SA6D108, SA6D108E |
| |
| 6136-61-1820 GASKET |
| DCA, EGS160, EGS190, S6D105, S6D108, S6D108E, SA6D108, SA6D108E, SA6D110, SAA6D108E, WA380 |
| |
| DK131115-1200 GASKET |
| DCA, EGS160, S4D105, S6D108, S6D108E, S6D110, SA6D95L |
| |
| DK154390-1300 GASKET |
| DCA, S6D108, S6D108E |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
6150-11-5910 |
[1] |
MUFFLER Komatsu |
18.061 kg. |
| |
|
|
["SN: 28448-UP"] |
|
| |
6150-11-5511 |
[1] |
MUFFLER Komatsu China |
|
| |
|
|
["SN: 22835-28447"] analogs:["6150115513", "6150115590", "6150115512"] |1. |
|
| |
6150-11-5510 |
[1] |
MUFFLER Komatsu China |
|
| |
|
|
["SN: 10001-22834"] |1. |
|
| 2 |
6150-11-5710 |
[1] |
GASKET (K1) Komatsu |
0.023 kg. |
| |
|
|
["SN: 10001-UP"] |
|
| 3 |
01010-61030 |
[2] |
BOLT Komatsu China |
0.03 kg. |
| |
|
|
["SN: 10001-UP"] analogs:["0101031030", "01010E1030"] |
|
| 4 |
01050-61045 |
[2] |
BOLT Komatsu |
0.039 kg. |
| |
|
|
["SN: 10001-UP"] |
|
| 5 |
6114-11-5590 |
[2] |
NUT Komatsu |
0.01 kg. |
| |
|
|
["SN: 10001-UP"] |
|
| 6 |
6150-11-5720 |
[1] |
BRACKET Komatsu China |
|
| |
|
|
["SN: 29114-UP"] |
|
| |
6150-11-5430 |
[1] |
BRACKET Komatsu China |
|
| |
|
|
["SN: 28448-29113"] |6. |
|
| 7 |
01010-31040 |
[4] |
BOLT Komatsu |
0.036 kg. |
| |
|
|
["SN: 10001-UP"] analogs:["01010E1040", "6127113210"] |
|
| 8 |
6631-11-5630 |
[4] |
SPACER Komatsu |
0.124 kg. |
| |
|
|
["SN: 10001-UP"] |
|
| 9 |
01010-31025 |
[4] |
BOLT Komatsu China |
0.03 kg. |
| |
|
|
["SN: 10001-UP"] analogs:["01010E1025", "0101061025", "0104041025"] |
|
| 10 |
01580-01008 |
[4] |
NUT Komatsu |
0.01 kg. |
| |
|
|
["SN: 10001-UP"] analogs:["M018201000006", "0150431006", "0158031008"] |
|
| 11 |
6150-11-5561 |
[1] |
TUBE Komatsu China |
|
| |
|
|
["SN: 29114-UP"] |
|
| |
6150-11-5570 |
[1] |
TUBE Komatsu China |
|
| |
|
|
["SN: 28448-29113"] |11. |
|
| 12 |
01010-51035 |
[1] |
BOLT,(SEE FIG.0501) Komatsu |
0.033 kg. |
| |
|
|
["SN: 10001-UP"] analogs:["801015556", "0101081035", "01010D1035"] |
|
| 13 |
6151-11-5590 |
[1] |
PIPE,EXHAUST Komatsu China |
|
| |
|
|
["SN: 10001-UP"] |
|
| 14 |
6138-11-5620 |
[1] |
CLAMP Komatsu China |
|
| |
|
|
["SN: 10001-UP"] |
|
| 15 |
6693-12-5550 |
[1] |
BOLT Komatsu |
0.24 kg. |
| |
|
|
["SN: 10001-UP"] |
|
| 16 |
01582-01411 |
[2] |
NUT Komatsu |
0.022 kg. |
| |
|
|
["SN: 10001-UP"] analogs:["0158211411"] |
|
| 17 |
6151-11-5670 |
[2] |
WASHER Komatsu |
0.006 kg. |
| |
|
|
["SN: 10001-UP"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
