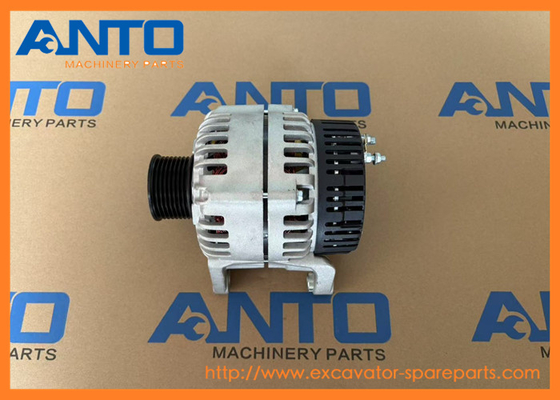

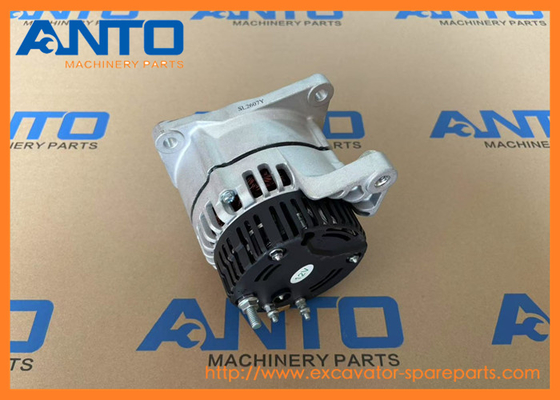

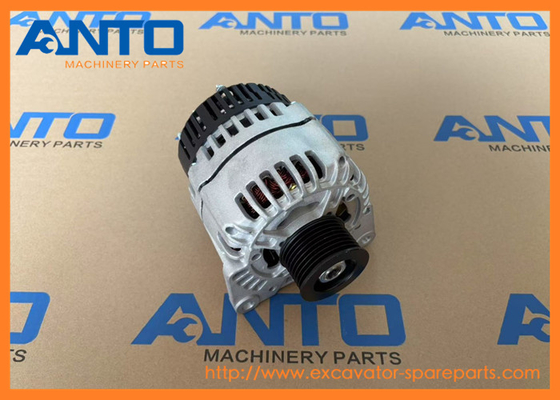

320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V

I appreciate the help from Paul, he's prefessional and knows exactly what parts I need. My CAT has gone back to work without any problem.

—— Raphael

Got the final drive and its beautiful I think. We've have it assembled in our Hitachi ZX330 excavator, my machines goes to work again now. Many thanks

—— Kevin

Hızlı sevkiyat, gelen parçalar kaliteli, motorumuz tamir edilmiş ve maksimum güçte kusursuz çalışıyor. Teşekkürler Tanrı seni kutsasın.

—— Muhammed

Ben sohbet şimdi

320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V

320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V
320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V 320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V 320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V

Büyük resim :  320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: OEM
Model numarası: 320/08719
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: 85 USD / pcs
Ambalaj bilgileri: Ağır parçalar için ahşap kutu, hafif parçalar için kağıt karton
Teslim süresi: 3-7 iş günü
Ödeme koşulları: T/T, D/P, D/A, Western Union, L/C, MoneyGram
Yetenek temini: 100-2000
Detaylı ürün tanımı
Gerilim: 12 V Kategori: Motor parçaları
Ürün adı: Alternatör Başvuru: Tekerlek yükleyici ekskavatör buldozer
Parça numarası: 320/08719 Paketleme: Standart ihracat karonu
Vurgulamak:

JCB excavator alternator 12V

,

320/08719 alternator engine part

,

9TST compatible alternator with warranty

  • 320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V





  • Specification
Name Alternator
Parts No 320/08719
Voltage 12V
Category Engine Parts
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing





  • Technical specifications

1.Voltage and Current Output: This alternator operates at 12 volts and provides an output current of 95 amps, which is sufficient to power the electrical systems of relevant JCB equipment and recharge the battery.



2.Mounting and Dimensions: The mount hole ID 1 is M10 x 1.50 threaded, and mount hole 2 is unthreaded, with an alt mounting foot ID of 10.200 mm. These precise dimensions ensure it can be accurately installed in the dedicated positions of corresponding machine models.



3.Pulley Information: It is equipped with a solid pulley having an outer diameter of 56.200 mm and eight grooves, which interfaces with the engine's belt drive to obtain rotational mechanical energy.



4.Electrical Configuration: Its terminal B+ size is M8 x 1.25, and it features negative polarity. The regulator and fan are internally located, which helps safeguard these key components from dust and other harsh operating conditions.





  • More other altemator parts fit for JCB machine
714/40273 Alternator assembly 24V-40Amp
JCB

714/34300 Alternator 24.volt
JCB

714/40529 Alternator assembly
JCB

714/40406 Alternator 24V 50amp
JCB

714/20400 Alternator 65Amp shielded
JCB

320/08610 Alternator 14V-95AMP
JCB

320/08560 Alternator 12V-95AMP
JCB

335/B4246 Alternator
JCB





  • Catalog parts list
Pos. Part No Qty Parts name Comments
1 320/03029 [1] Seal rear oil
2 320/09454 [1] Motor Starter 12V
3 320/08719 [1] Alternator 12V 95A MFR
4 320/04090 [2] Cap Oil Filler Assembly
5 320/04555 [1] Sensor Temperature coolant (2 pin)
6 320/08598 [1] Belt drive L=1835
7 320/04510 [1] Gasket water pump
8 320/04542 [1] Pump water assembly
9 320/03119 [1] Seal front oil
10 320/08759 [1] Tensioner Auto-Tensioner
11 320/04133A [1] Oil Filter
12 320/07853 [1] Element Filter CCV
13 320/07382 [1] Element fuel filter
14 320/06194 [1] Pressure sensor

320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V 0







  • We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Advantage



1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service







  • Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
