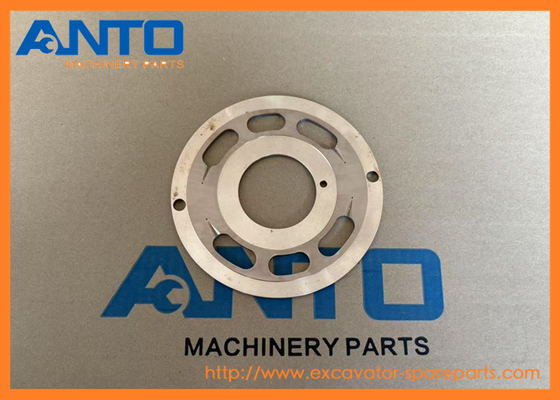

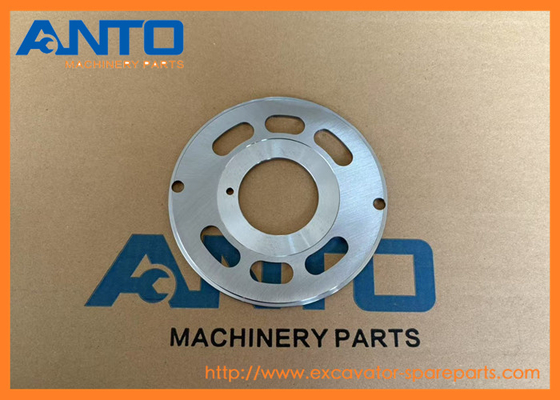

234-4543 Valve Plate for CAT 345GC 365BL 374FL 385B 390FL Excavator

Büyük resim : 234-4543 Valve Plate for CAT 345GC 365BL 374FL 385B 390FL Excavator

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	OEM
Model Number:	C9.3 C15 C18

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1 PCS
Fiyat:	26 USD / pcs
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

İletişim

Detaylı ürün tanımı

Category:	Swing Motor	Machine model:	345GC 365BL 374FL 385B 390FL
Application:	Excavator	Product name:	Valve Plate
Part number:	234-4543 2344543	Packing:	Standard Export Carton
Vurgulamak:	CAT excavator valve plate , excavator swing motor part , 345GC valve plate replacement

234-4543 2344543 Valve Plate Excavator Spare Parts Fitting For C9.3 C15 C18 385B 390FL

Specification

Name	Valve Plate
Parts No	234-4543 2344543
Machine Model	345GC 365BL 374FL 385B 390FL
Category	Swing Motor
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

Function

1.Regulating Fluid Flow: The valve plate is equipped with multiple valve ports and channels. Through these structures, it can precisely control the direction and path of hydraulic fluid flow, guiding the fluid to enter and exit specific chambers or components, so as to realize the expected hydraulic operation, such as controlling the movement of cylinders or the rotation of motors.

2.Ensuring Pump Efficiency: In the pump, it cooperates with the reciprocating or rotating motion of components such as pistons. By accurately opening and closing the valve ports at the right time, it creates the necessary pressure difference, which is helpful to improve the pumping efficiency of the pump and ensure the stable output of hydraulic pressure.

Compatible models

EXCAVATOR 365B 365B L 365C 365C L 365C L MH 374D L 374F L 385B 385C 385C FS 385C L 385C L MH 390D 390D L 390F L
FRONT SHOVEL 385C
MOBILE HYD POWER UNIT 365C L 385C 385C L C.ater.pillar.

More other plate parts fit for C A T machine

3134424 PLATE-CONTROL

2864C, 345C, 345C L, 365B L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 5090B, 586C, 621H, 621K, 623H, 623K, 623K LRC, 627H, 627K, 627K LRC, 824K, 825K, 826K, 966H, 966K, 966M, 966M XE, 972...

1559137 PLATE

120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M 2, 140M 3, 140M 3 AWD, 160M 2, 160M 3, 160M 3 AWD, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 345B, 345B II,...

1559134 PLATE

120H, 12H, 135H, 140H, 143H, 160H, 163H, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 385B...

1559119 PLATE

330D L, 330D LN, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 5090B, 797, W345B II, W345C MH

1583960 PLATE

330C, 345C, 345C L, 345D L, 345D L VG, 365B, 365B II, 365B L, 365C, 365C L, 374D L, 374F L, 375, 375 L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F L, 5080

1588973 PLATE

365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, 5090B

1588981 PLATE-FRICTION

365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, 5090B

1588982 PLATE-SEPARATOR

365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, 5090B

4I5005 PLATE

324D, 325C, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L, 345...

3415272 PLATE

324D, 329D LN, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E L, 336E LN, 336F L, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L,...

1955479 PLATE

345C, 345C L, 345C MH, 345D L, 365B, 365B II, 365B L, 365C, 365C L, 385B, 385C, 385C L

Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	158-8967	[1]	BUSHING
2	158-8970	[1]	SPACER (47X58X1.5-MM THK)
3	158-8969	[12]	PIN
4	242-6922	[1]	PLATE
5	158-8973	[1]	PLATE
6	158-9009	[1]	PISTON AS
7	295-9433	[1]	BARREL
8	158-8981	[3]	PLATE-FRICTION
9	158-8982	[4]	PLATE-SEPARATOR
10	7Y-4277 J	[1]	SEAL-O-RING
11	8F-5900 J	[1]	SEAL-O-RING
12	185-0325	[1]	PISTON-BRAKE
13	158-8978 J	[1]	SEAL-O-RING
14	158-8971	[1]	SPACER (47X61X3-MM THK)
15	177-2550	[1]	HEAD GP-MOTOR
16	110-5525	[2]	PLUG
17	3J-1907 J	[2]	SEAL-O-RING
18	8T-9598	[1]	RING-RETAINING
19	4I-5850	[1]	RING
20	7Y-4269	[1]	BEARING AS-ROLLER
21	158-8965	[3]	SPACER (50X61X3-MM THK)
22	234-4543	[1]	PLATE
23	123-2139	[20]	SPRING
24	158-8968	[1]	SPRING
25	8T-4241	[2]	RING-RETAINING
26	234-4542	[1]	BODY
27	095-0946	[1]	RING-RETAINING
28	158-8979 J	[1]	SEAL-OIL
29	158-8964	[1]	SHAFT
30	158-8976	[1]	RETAINER
31	295-9432	[1]	BEARING AS
32	095-1716 J	[1]	SEAL-O-RING
33	170-9985	[2]	VALVE-PISTON
34	170-9996	[2]	PLUG
35	095-1600 J	[2]	SEAL-O-RING
36	170-9986	[2]	SPRING
37	161-7611 M	[4]	BOLT-SOCKET HEAD (M22X2.5X45-MM)
			AVAILABLE REPAIR KIT(S):
	177-2547 J		KIT-SEAL (SWING MOTOR)
	J		KIT MARKED J SERVICES PART(S) MARKED J
	M		METRIC PART

234-4543 Valve Plate for CAT 345GC 365BL 374FL 385B 390FL Excavator 0

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
